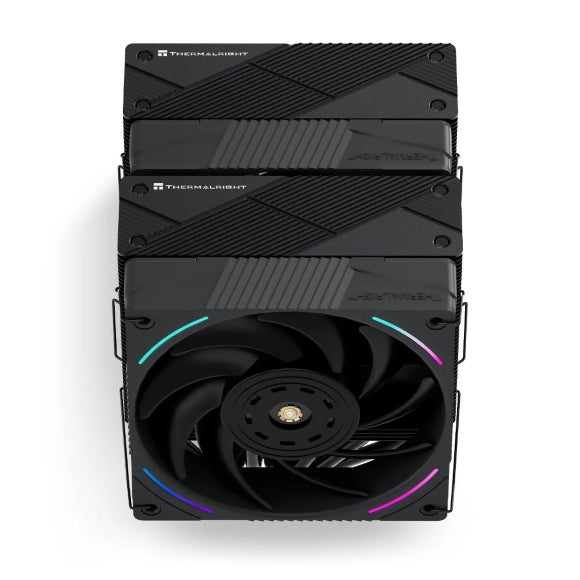

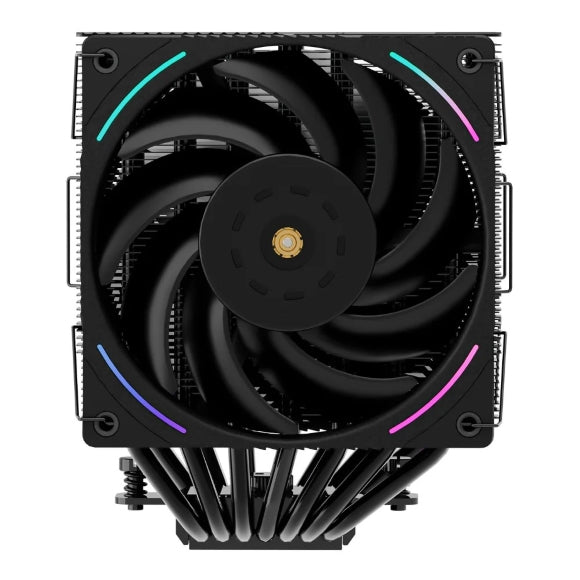

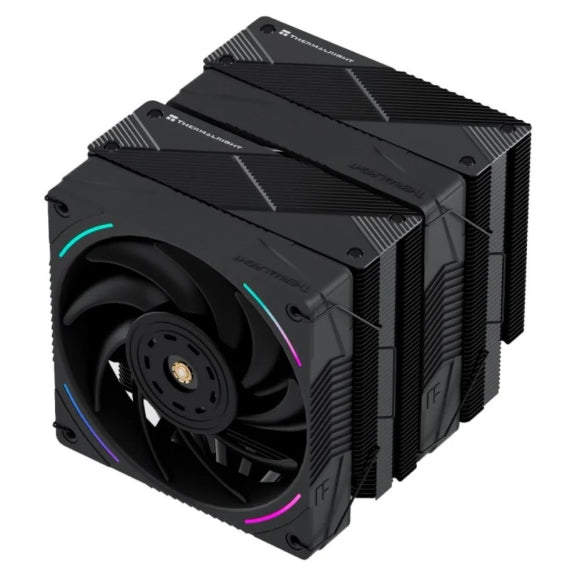

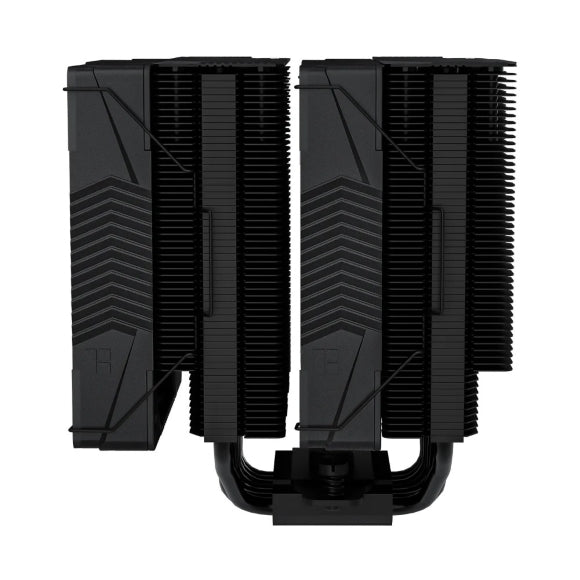

Thermalright Phantom Spirit 120 EVO CPU Cooler

The CPU radiator adopts anodic black frosted process, the twin towers of the radiator body present a frosted texture, with 7 fully plated and blackened heat pipes, as well as a precision micro-engraved reflow soldered copper base, which greatly enhances the overall performance of the radiator.

• AGHP technique7x6mm heat pipe with AGHP upgraded 4th generation technology, the Inverse gravity effect caused by vertical / horizontal orientation. Up to 20000 hours of industrial service life.
• Performance Fan Matching Equipped with a fan that not only has a high rotation speed, but also has a very high face value. 2150RPM high rotation speed can quickly drive the heat, the red clay block in the middle of the fan serves as a balancing act, and the fan is surrounded by four rounded ARGB lines.
• Compatibility CPU cooling slot support: Intel: LGA1700/1150/1151/1155/1156/1200/2011/2066;AMD: AM4/AM5;for different CPU slot platforms, provide the corresponding mounting plate or fasteners, can be combined with the installation instructions or follow the tutorial to get on the machine.

Technical Spec :
Heatsink Specifications:
Dimension：L110 mm x W125 mm x H157 mm
Weight：810g(Without Fan)
Heat pipes：6mm heatpipe x 7 units
Copper Base：C1100 Pure copper nickel plated

TL-K12 FAN Spec：
Dimension：L120 mm x W120 mm x H25 mm
Weight：220g
Rated Speed：2150 RPM±10% (MAX)
Noise Level：27 dBA
Air Flow：69 CFM (MAX)
Air Pressure：2.87 mm H2O (MAX)
Ampere：0.16 A
Connector：4 Pin (PWM Fan connector)
ARGB Connector: 3 PIN 5V
Bearing Type : S-FDB V2 Bearing
