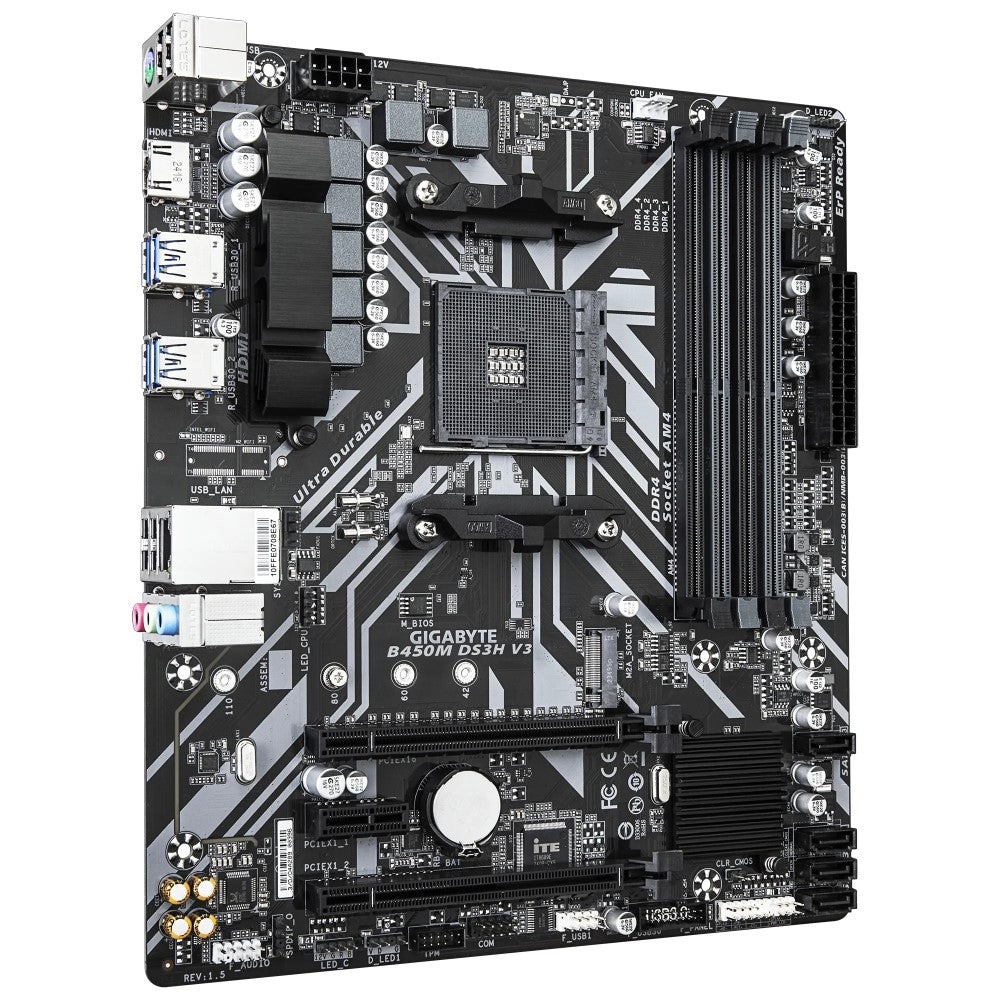

CPU
|
1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ AMD Ryzen™ 5000 G-Series/ AMD Ryzen™ 4000 G-Series/ 3rd Generation AMD Ryzen™/ 2nd Generation AMD Ryzen™/ 1st Generation AMD Ryzen™/ 2nd Generation Ryzen™ with Radeon™ Vega Graphics/ 1st Generation Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors |
| |
(Please refer “CPU Support List” for more information.) |
|
Chipset
|
1. AMD B450 |
|
Memory
|
1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| 2. Dual channel memory architecture |
| 3. Support for DDR4 2933/2667/2400/2133 MT/s memory modules |
| 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| 6. Support for Extreme Memory Profile (XMP) memory modules |
| (Please refer “Memory Support List” for more information.) |
|
Onboard Graphics
|
|
Integrated Graphics Processor:
|
| 1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz(Note) |
| * Support for HDMI 2.1 version and HDCP 2.2.(Note) |
| Maximum shared memory of 16 GB |
| (Note) Actual support may vary by CPU. |
|
Audio
|
1. Realtek® Audio codec |
| 2. High Definition Audio |
| 3. 2/4/5.1/7.1-channel |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| 4. Support for S/PDIF Out |
|
LAN
|
1. Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
|
Expansion Slots
|
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| (The PCIEX16 slot conforms to PCI Express 3.0 standard.) |
| 2. 1 x PCI Express x16 slot, running at x1 (PCIEX1_2) |
| 3. 1 x PCI Express x1 slot |
| (The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.) |
| (Note) Actual support may vary by CPU. |
|
Storage Interface
|
1. 1 x M.2 connector (Socket 3, M key, type 22110/2280/2260/2242 SATA and PCIe* 3.0 x4/x2 SSD support) |
| * Actual support may vary by CPU. |
| 2. 4 x SATA 6Gb/s connectors |
| 3. Support for RAID 0, RAID 1, and RAID 10 |
|
USB
|
Chipset:
|
| 1. 2 x USB 3.1 Gen 1 ports available through the internal USB header |
| 2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| CPU: |
|

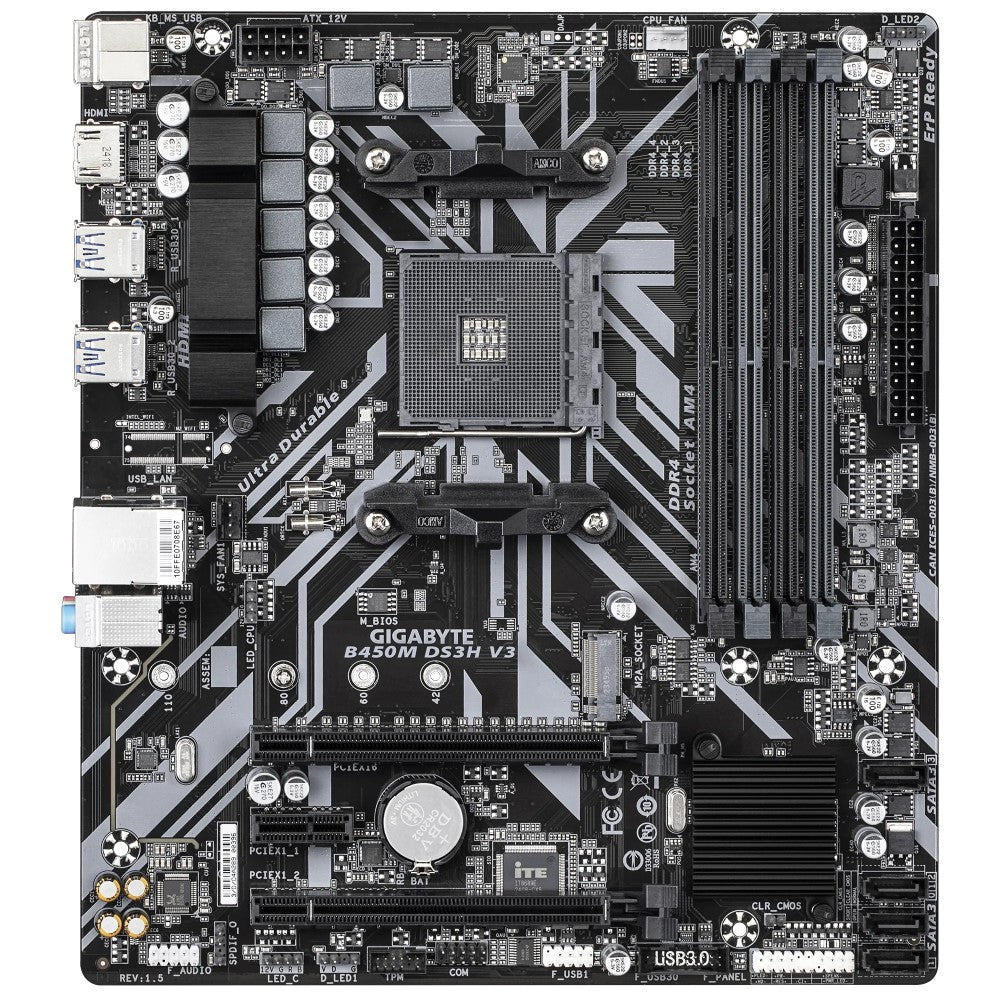

Internal I/O Connectors
|
1. 4 x USB 3.1 Gen 1 ports on the back panel |
| 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector |
| 3. 1 x CPU fan header |
| 4. 1 x system fan header |
| 5. 1 x CPU cooler LED strip/RGB LED strip header |
| 6. 1 x RGB LED strip header |
| 7. 2 x addressable LED strip headers |
| 8. 1 x M.2 Socket 3 connector |
| 9. 4 x SATA 6Gb/s connectors |
| 10. 1 x front panel header |
| 11. 1 x front panel audio header |
| 12. 1 x S/PDIF Out header |
| 13. 1 x USB 3.1 Gen 1 header |
| 14. 1 x USB 2.0/1.1 header |
| 15. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) |
| 16. 1 x serial port header |
| 17. 1 x Clear CMOS jumper |
|
Back Panel Connectors
|

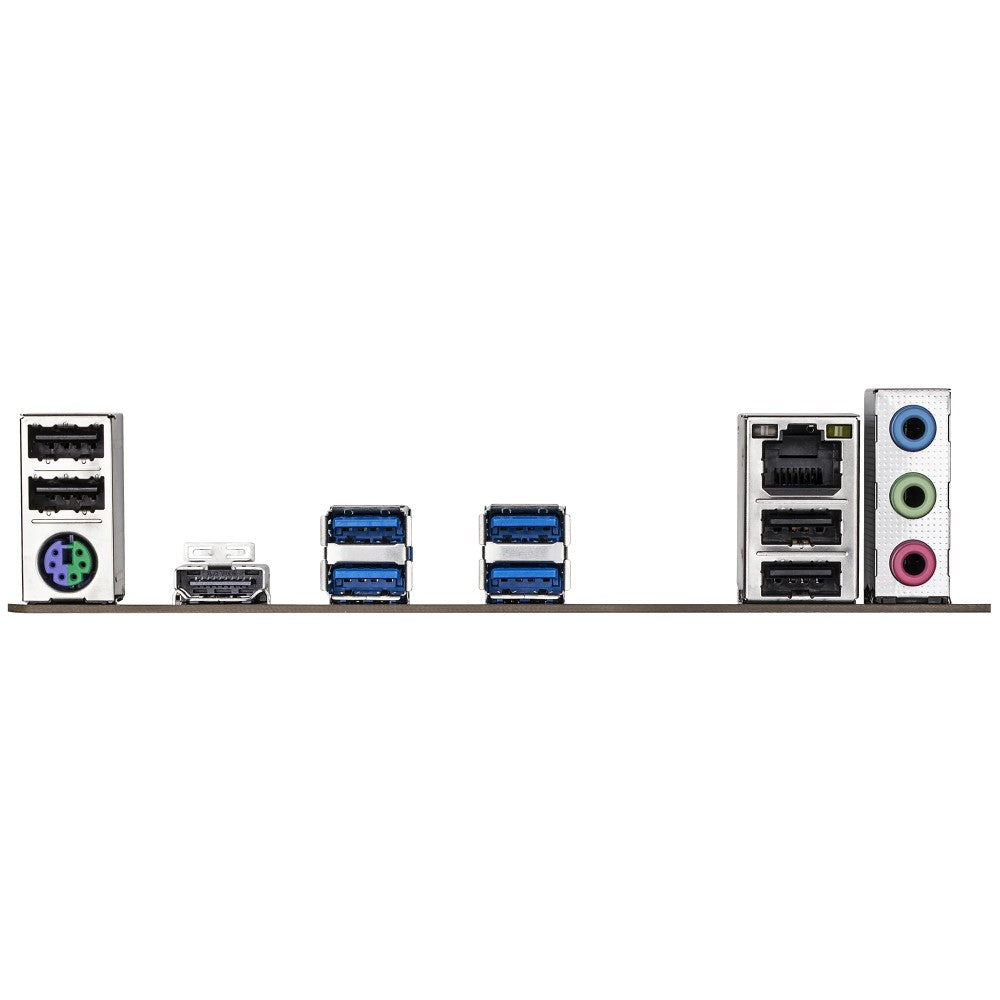

1. 1 x PS/2 keyboard/mouse port |
| 2. 1 x HDMI port |
| 3. 4 x USB 3.1 Gen 1 ports |
| 4. 4 x USB 2.0/1.1 ports |
| 5. 1 x RJ-45 port |
| 6. 3 x audio jacks |
|
I/O Controller
|
1. iTE® I/O Controller Chip |
|
H/W Monitoring
|
1. Voltage detection |
| 2. Temperature detection |
| 3. Fan speed detection |
| 4. Overheating warning |
| 5. Fan fail warning |
| 6. Fan speed control |
| *Whether the fan speed control function is supported will depend on the cooler you install. |
|
BIOS
|
1. 1 x 128 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Unique Features
|
1. Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| @BIOS |
| EasyTune |
| Fast Boot |
| RGB Fusion |
| Smart Backup |
| System Information Viewer |
| 2. Support for Q-Flash |
| 3. Support for Xpress Install |
|
Bundled Software
|
1. Norton® Internet Security (OEM version) |
| 2. LAN bandwidth management software |
|
Operating System
|
1. Support for Windows 11 64-bit |
| 2. Support for Windows 10 64-bit |
| 3. Support for Windows 7 64-bit |
| * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
| * Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7. |
|
Form Factor
|
1. Micro ATX Form Factor; 24.4cm x 21.5cm |
|
Remark
|
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website. |
| |
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. |
